| Chamber Module Parameter | |
|---|---|
| Model No | OLV-YZM02 |
| Material | Aluminum Alloy |
| Chamber Dimension | L2230mm × W1900mm × H1970mm (L88 × W75 × H78 Inch) |
| Pressure | 2ATA |
| Weight | 750kg |
| Door Thickness | 40MM |
| Voltage | AC 240V / AC 110V, 50/60Hz |
| Input Power | 200W |
| Include | BIBS breathing system, Double sofa, 43-inch TV, Air conditioning, Intercom, Interior/Exterior Control Panel, Emergency stop button, Emergency pressure relief device |
| Air Conditioning Module Parameter | |
|---|---|
| Dimension | Exterior Dimension: L365×W445×H600 MM Interior Dimension: L530×W170×H260 MM |
| Weight | Exterior Weight: 30 KG Weight: 4 KG |
| Temperature Range | 2–10°C |
| Air Volume | 420 m³/hour |
| Wind Speed | 5 m/s |
| Power | 200W |

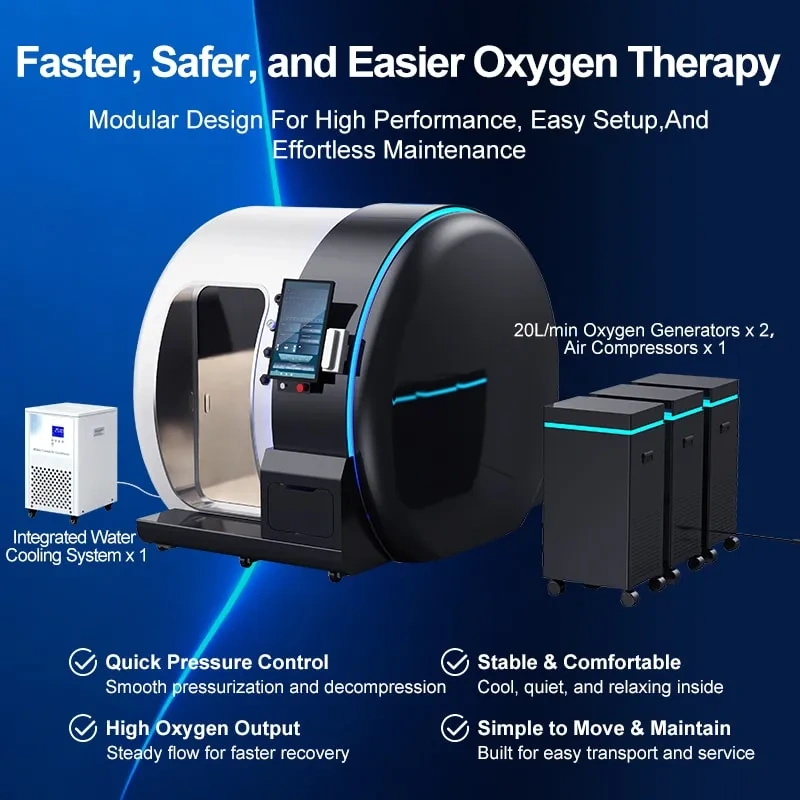

| Oxygen Module Parameter | Air Booster Module Parameter |
|---|---|
| Model No: OLV-YC20S | Model No: OLV-YCZ01 |
| Dimension: L500mm × W400mm × H960mm (L20 × W16 × H38 inch) |
Dimension: L500mm × W400mm × H960mm (L20 × W16 × H38 inch) |
| Weight: 90 kg | Weight: 100 kg |
| Outlet Pressure: >200 KPa | Output Pressure: >350 KPa |
| Oxygen Flow: 0–20 L/min (×2) | Air Flow: >400 L/min |
| Oxygen Purity: 93±3% | Noise: ≤60 dB |
| Oxygen Outlet Pressure: >350 KPa | Voltage: AC 240V / AC 110V, 50/60Hz |
| Voltage: AC 240V / AC 110V, 50/60Hz | Power: 3100 W |










There is no single schedule that is right for everyone. How often you should use your chamber depends on your health, the reason for use, the pressure setting, and the oxygen-delivery method.
Some medically supervised treatment plans involve one session a day, five days a week, but this is not a general recommendation for home or wellness use. Consult a physician experienced in hyperbaric medicine to determine an appropriate schedule, session length, and pressure setting. Always follow your chamber’s operating instructions.

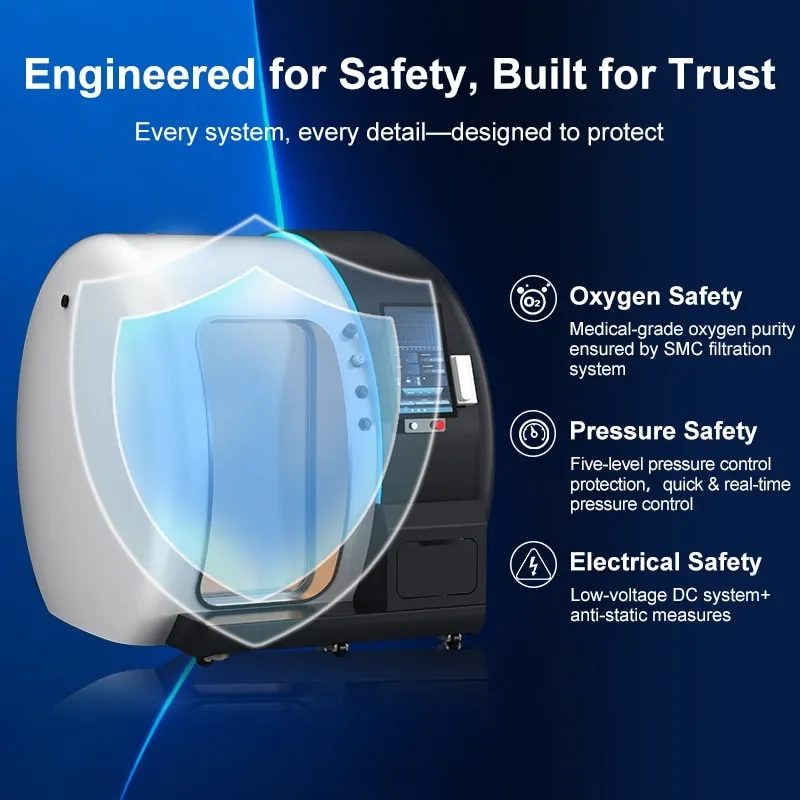

Our soft-shell and hard-shell hyperbaric chambers are designed with safety in mind, using durable materials selected for each model’s operating pressure. Each chamber undergoes quality inspections and functional testing before shipment. Pressure-control systems and multiple pressure-release safeguards help maintain stable operation and allow controlled pressure release when needed.

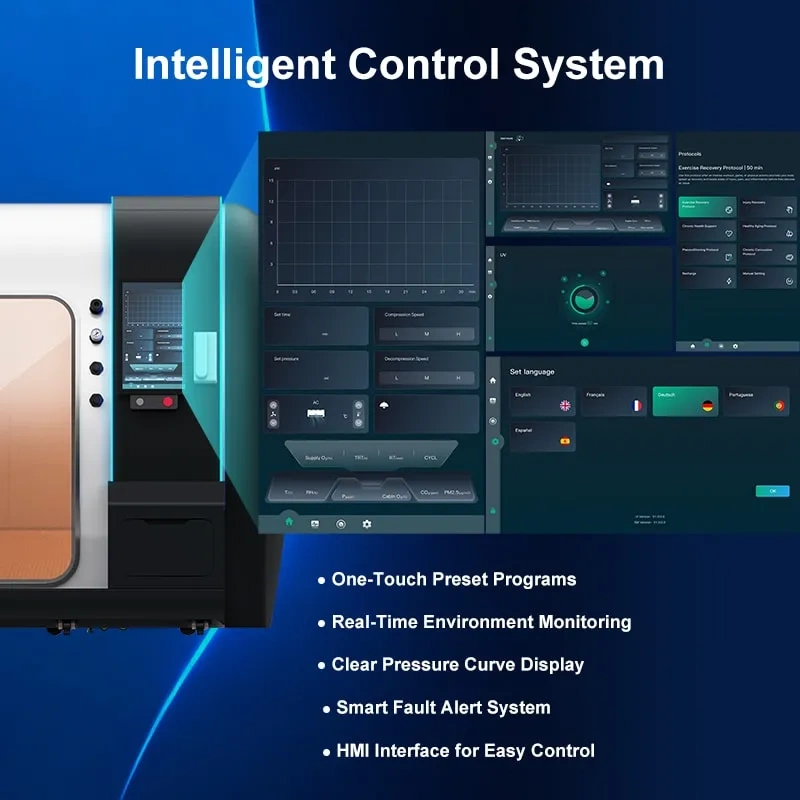

Yes. Our chambers are designed to allow one person to enter and operate the controls. Hard-shell models feature a sliding door and an internal touchscreen for controlling the session. Soft-shell models use a double-layer zipper system that can be opened and closed from both inside and outside, along with a remote control to start and stop operation.
For safe use, follow your model’s operating instructions and any supervision requirements. Being able to operate the controls independently does not mean every user should use the chamber unattended.
