A spacious, comfortable way to experience a sitting hyperbaric session.
The OLV-YZD01 combines adjustable pressure from 1.3 to 2.0 ATA with a dedicated BIBS oxygen delivery system, controls accessible from inside and outside the chamber, and a thoughtfully equipped interior. It is designed for individuals who value comfort and control, as well as wellness spaces offering a private, seated experience.| Specification | OLV-YZD01 |
|---|---|
| Chamber Type | Single-person hard-shell sitting chamber |
| Operating Pressure | Adjustable from 1.3 to 2.0 ATA |
| Chamber Dimensions | 1850 × 1224 × 1654 mm; 1760 mm high including wheels |
| Chamber Material | Q345R pressure vessel steel |
| System Weight | 950 kg |
| Oxygen Flow | 20 L/min |
| Oxygen Delivery | BIBS (Built-In Breathing System); nasal cannula option |
| Touchscreens | 21.5″ exterior screen and 15.6″ interior screen |
| Programs | 7 preset programs plus manual settings |

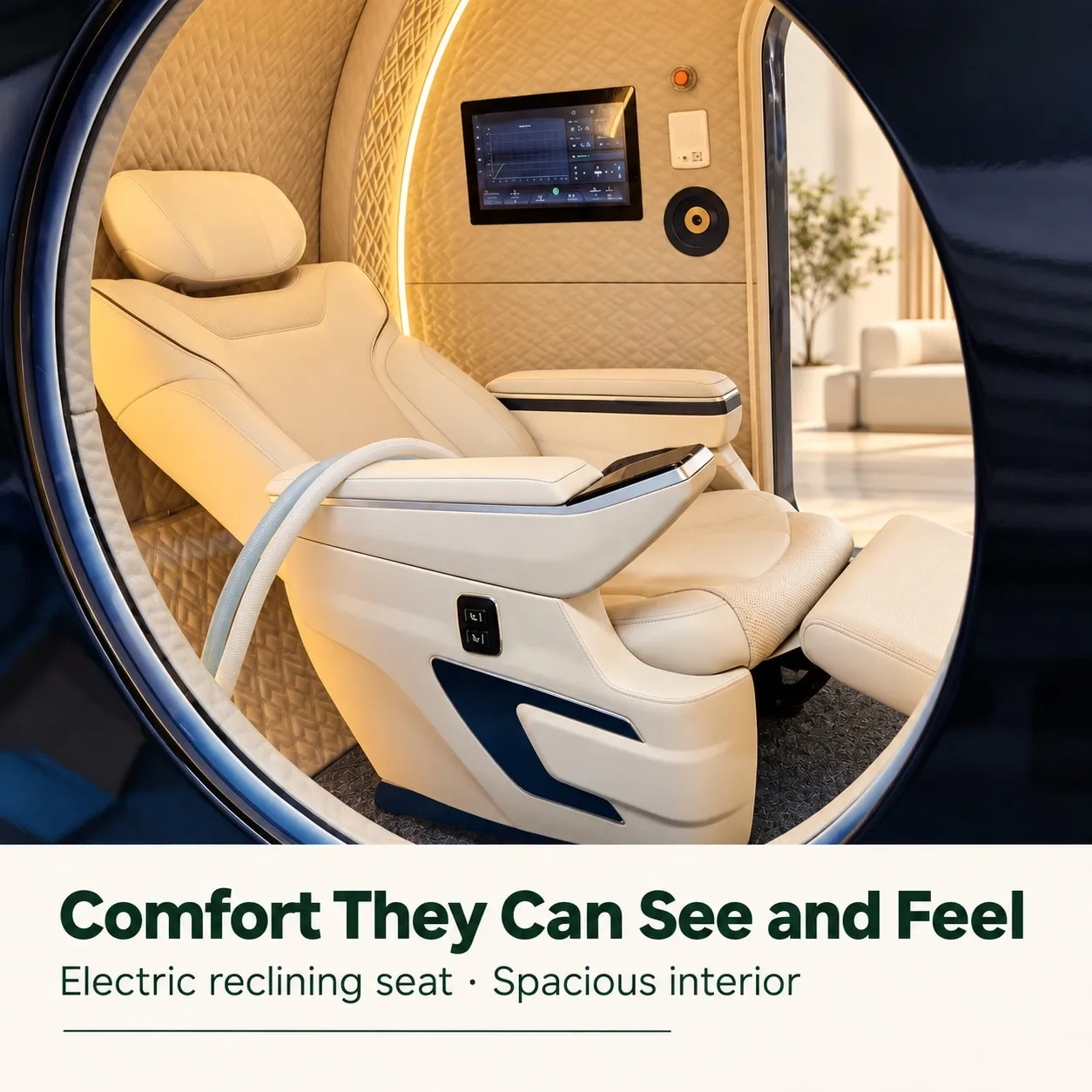

| Interior Features | Electric seat, 24″ LED TV, air conditioning and intercom |
| Pressure Controls | Automatic pressure relief, manual pressure release and emergency release |
| Viewing Window | 900 mm diameter |

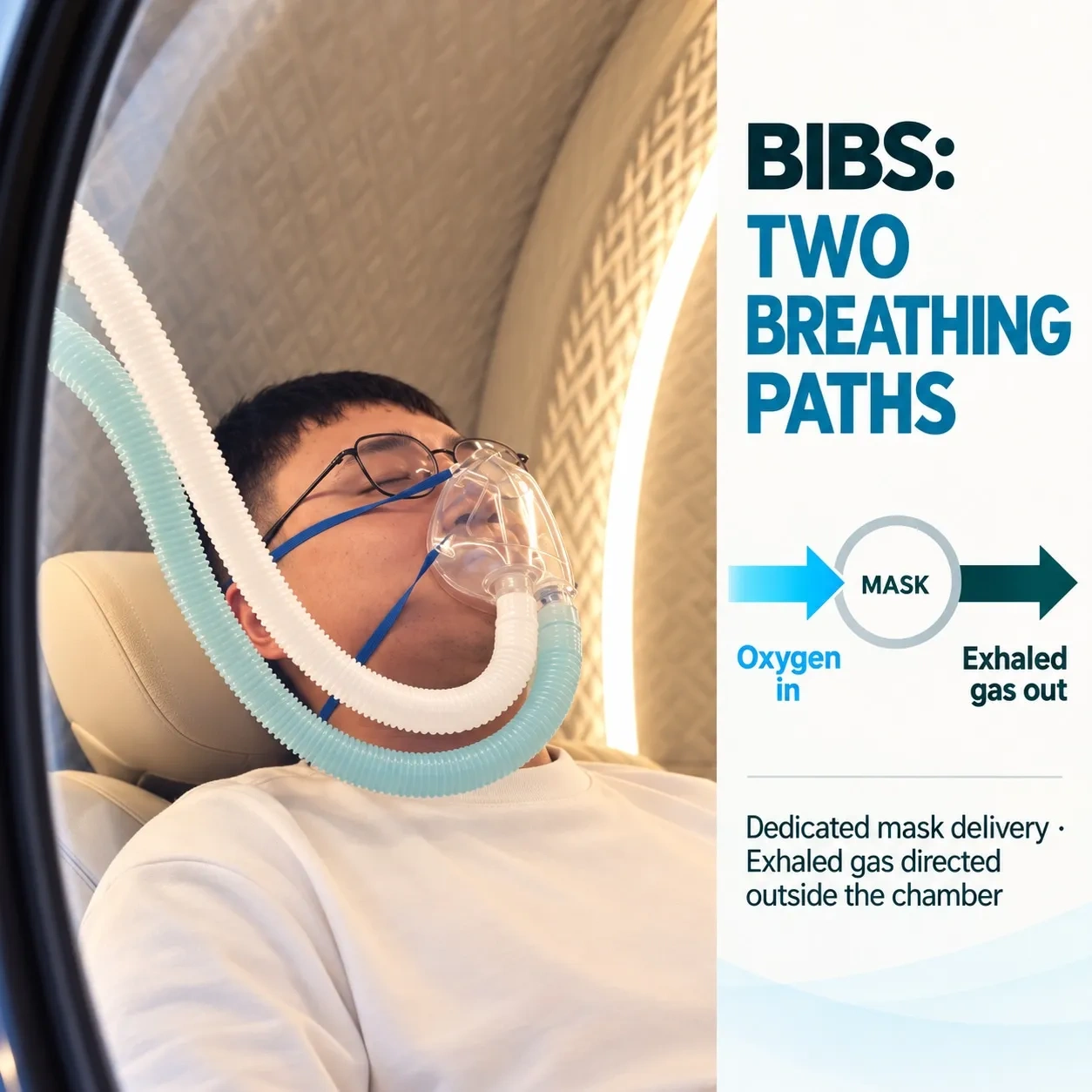

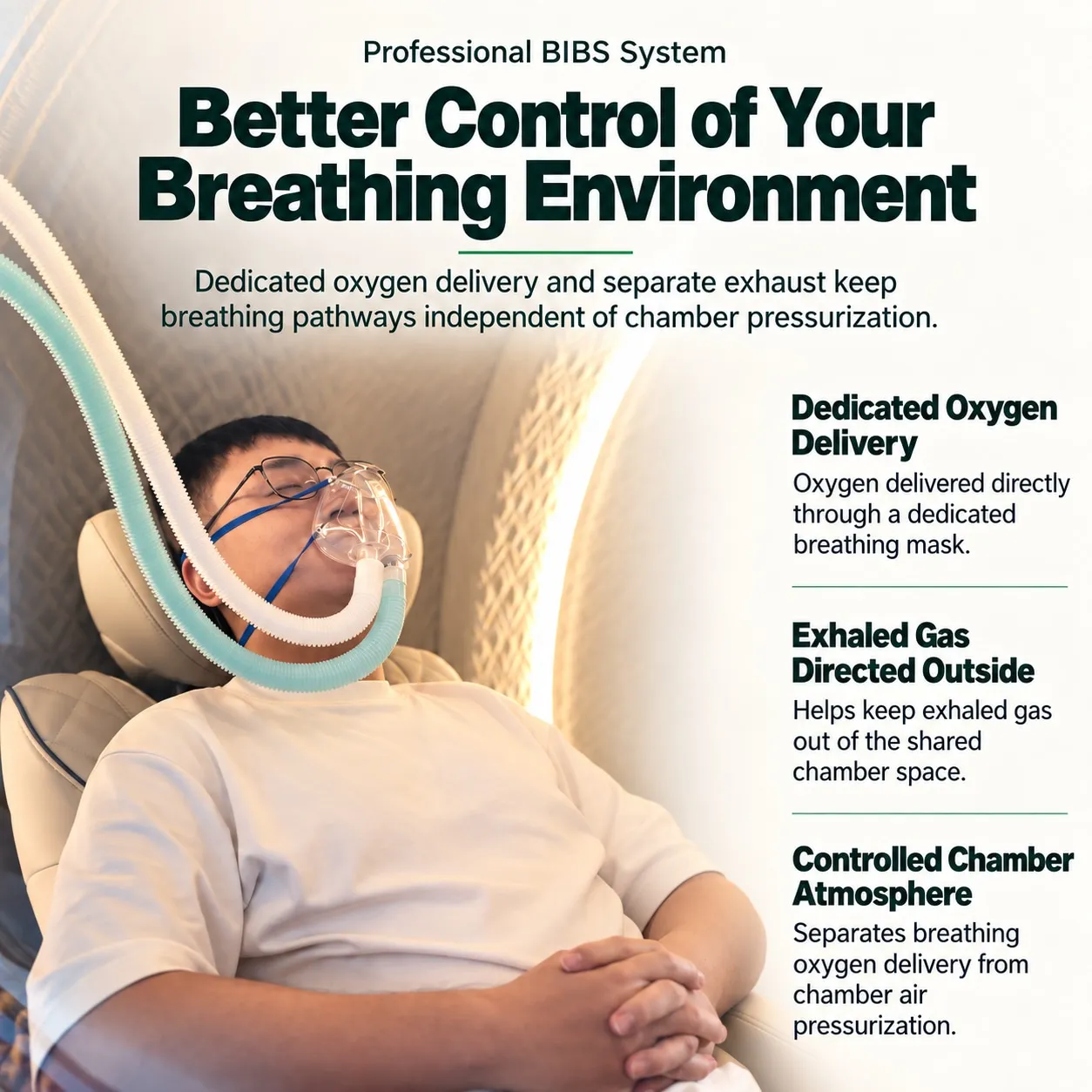

The BIBS (Built-In Breathing System) delivers oxygen through a dedicated mask and directs exhaled gas outside the chamber. This keeps the breathing pathway separate from chamber air pressurization.
3. Smart Control, Simple Operation

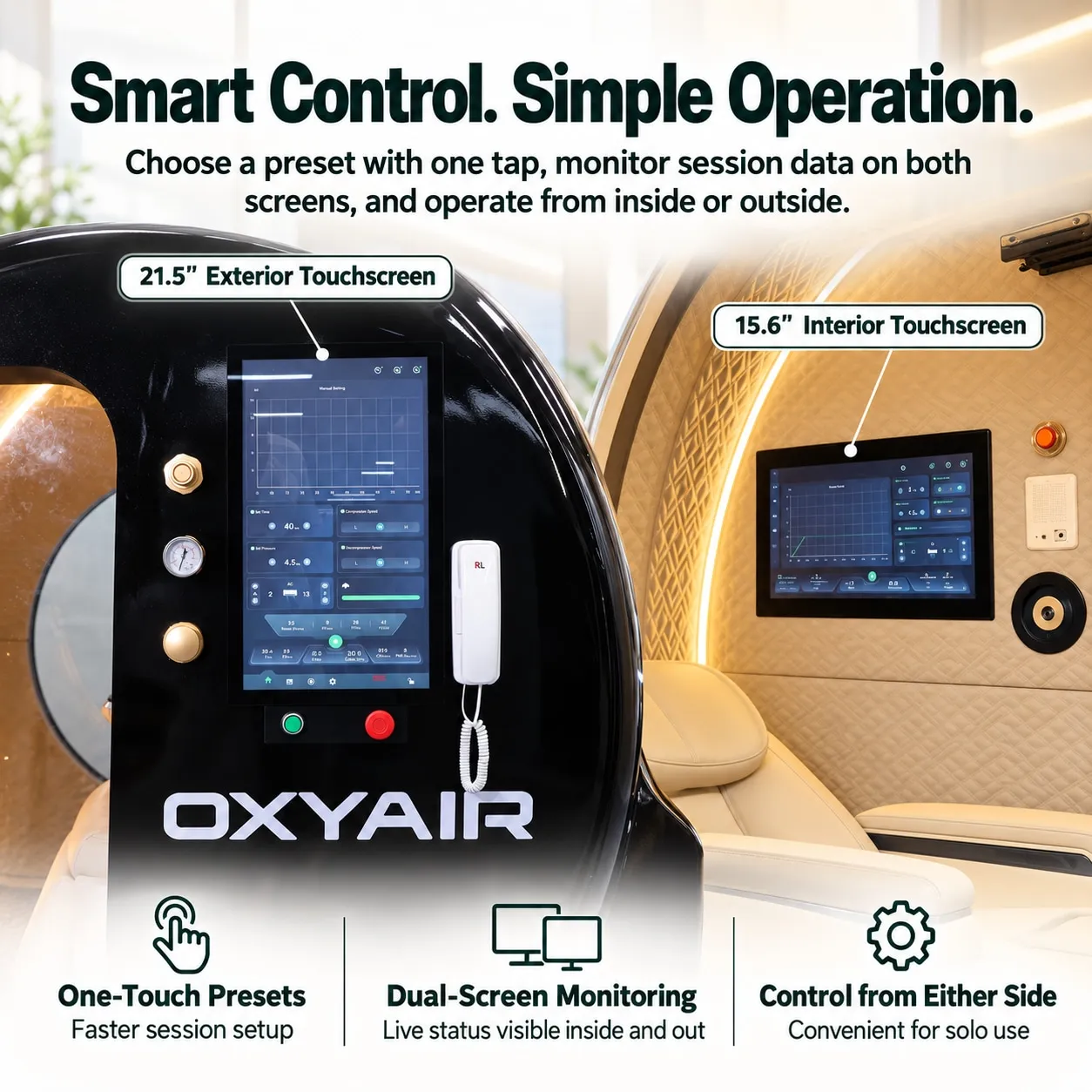

The OLV-YZD01 has a 21.5″ exterior touchscreen and a 15.6″ interior touchscreen. Session information can be viewed from inside and outside, while controls on both sides make operation convenient when one person is using the chamber.
The interface displays key information including chamber pressure, the pressure curve, session time, temperature and other operating data.

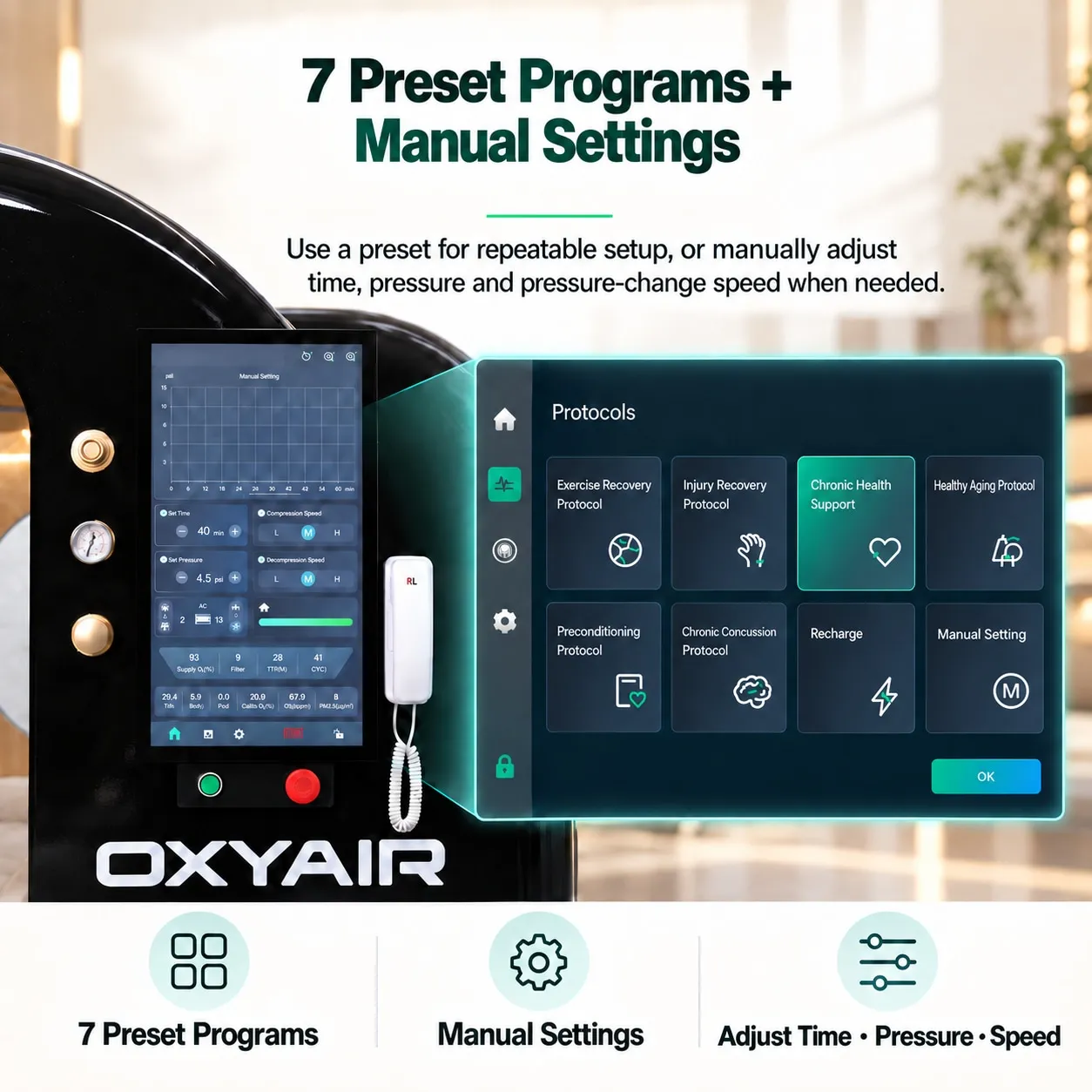

Select a preset for a straightforward start, or use Manual Settings to adjust session time, target pressure and pressure-change speed. The screen displays the selected program and operating status throughout the session.
Preset names describe software settings. They are not a statement of medical indications or treatment results.

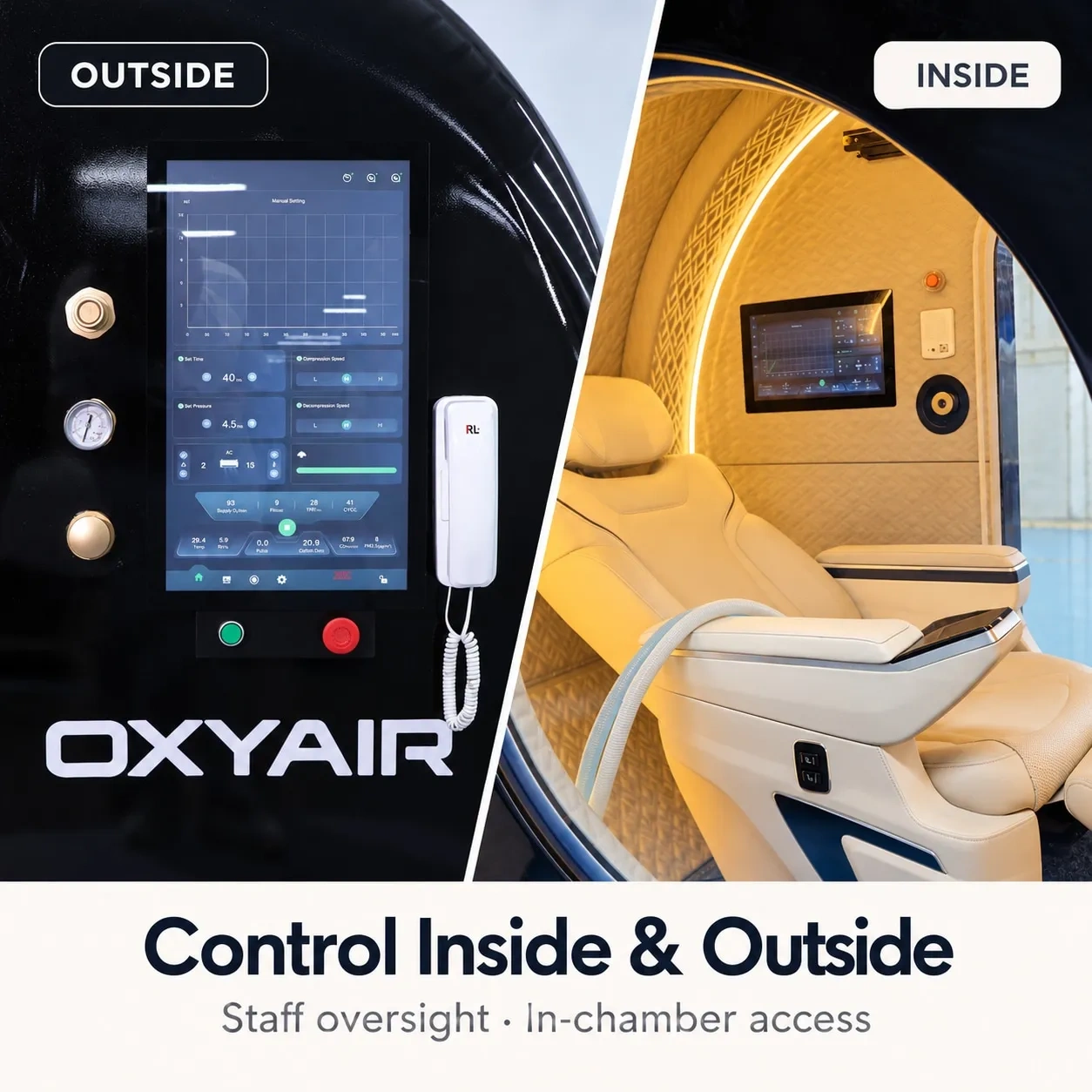

Automatic pressure relief is backed by manual and emergency release options. A pressure gauge allows the operator to read chamber pressure from outside, while controls and an emergency stop are accessible inside the chamber.
These features provide several ways to monitor and manage pressure during operation. Always follow the supplied operating and safety instructions.
4. Pressure and Communication Controls
The exterior pressure gauge and touchscreen let an operator follow chamber conditions during a session. Automatic pressure relief is supported by manual and emergency release options. Emergency stops and an intercom provide additional ways for the user and operator to respond and communicate.
5. Chamber Construction
Q345R Steel Chamber Construction

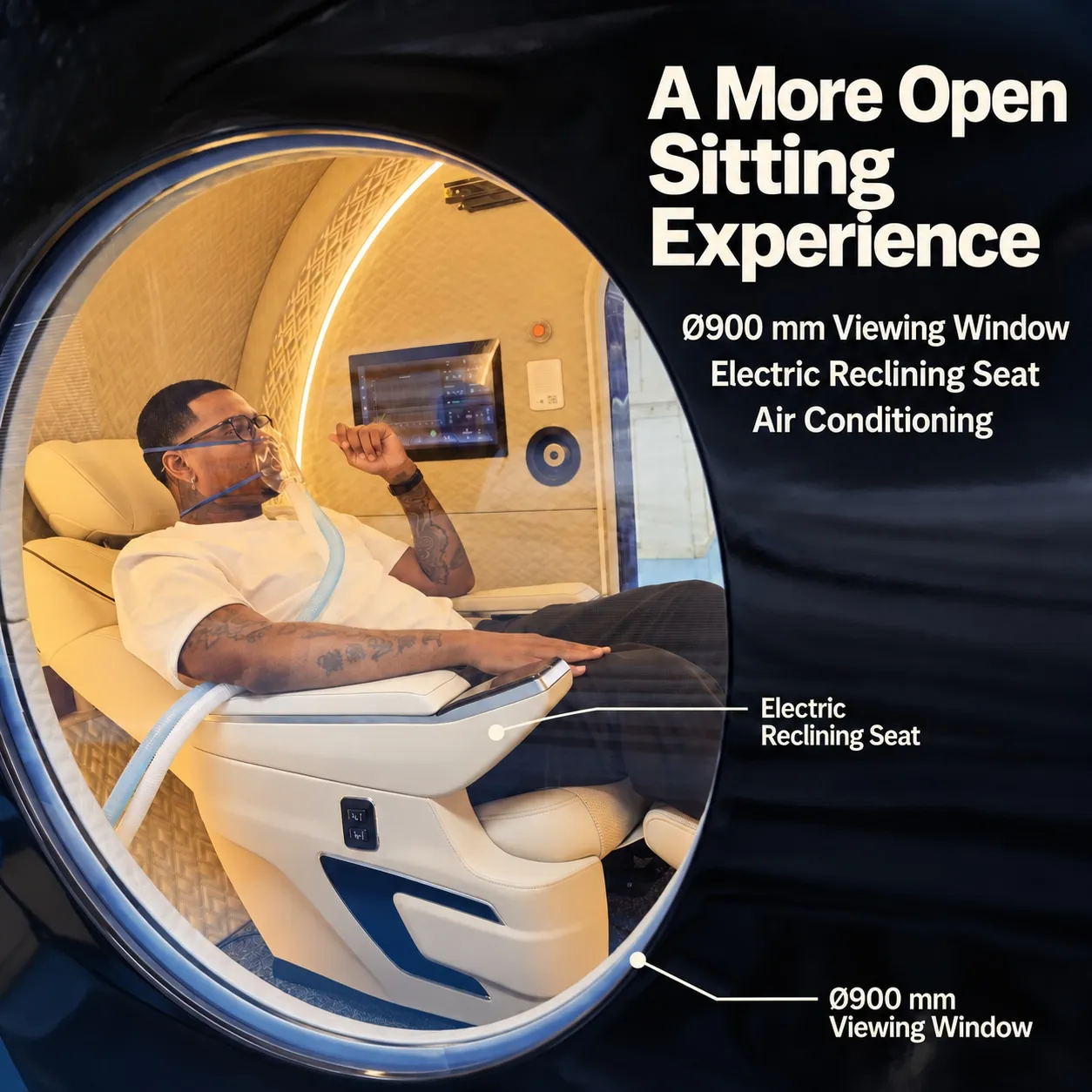

The OLV-YZD01 uses a Q345R pressure vessel steel chamber and a large PMMA viewing window. The window gives the user a clear view outside and allows an operator to maintain visual contact during a session.
A close look at the chamber body, window edge and finished interior helps you assess the materials and construction behind the product—not just its exterior appearance.
See What Comes with the Chamber

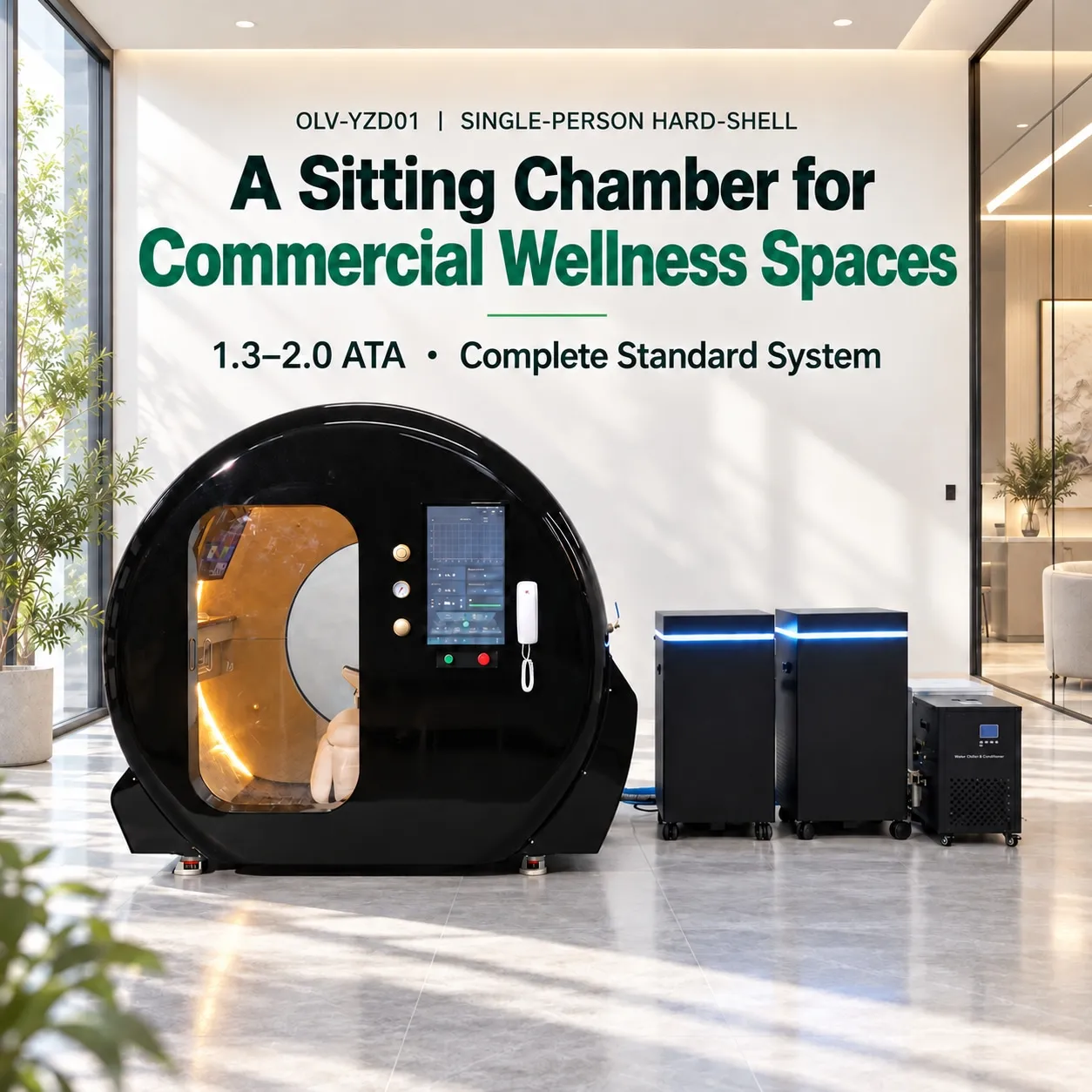

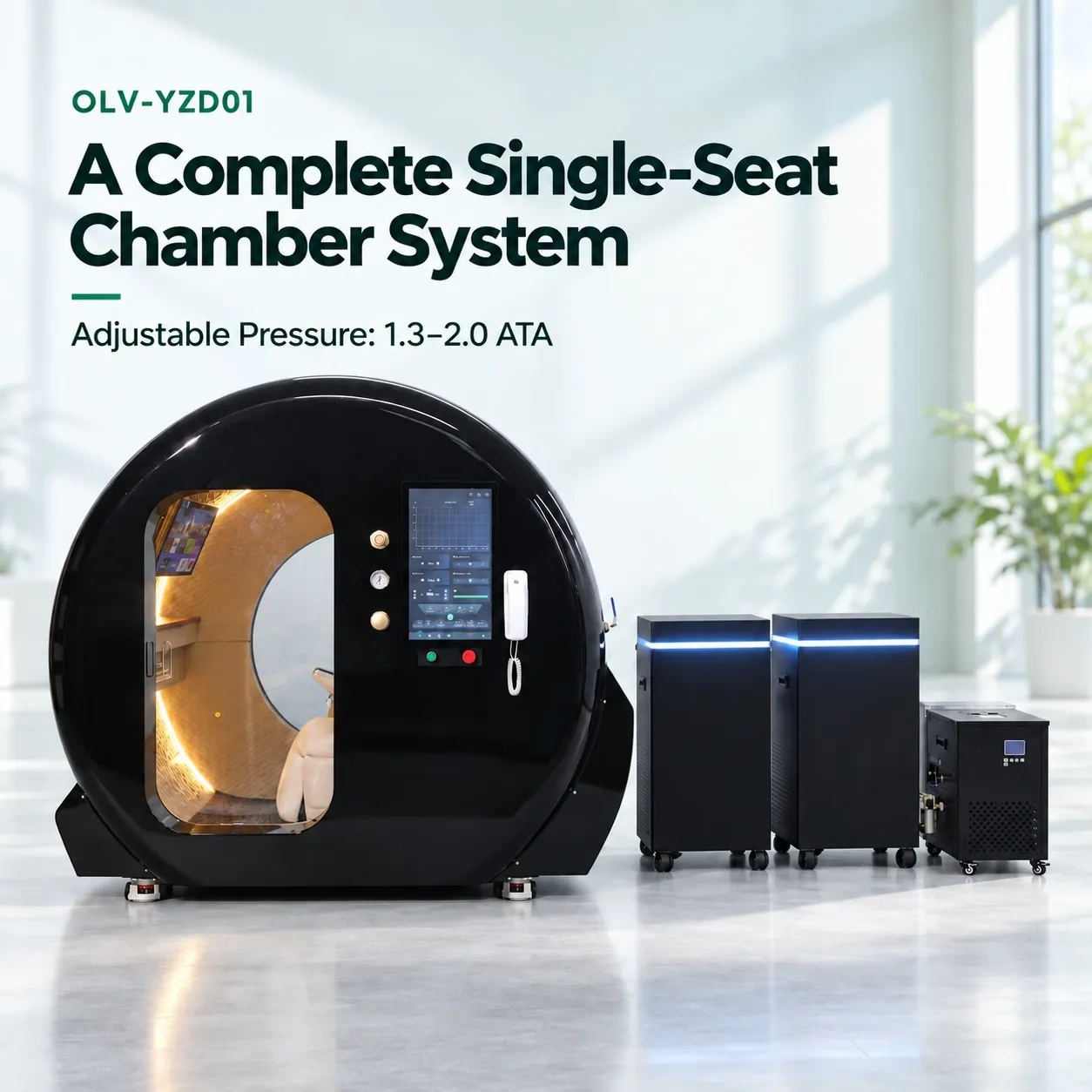

The OLV-YZD01 is supplied as a complete system. When planning your purchase and room layout, account for the chamber and its supporting equipment.
Standard system:
Single-person hard-shell sitting chamber
Oxygen concentrator
Air compressor
Air-conditioning unit
BIBS breathing mask and standard oxygen mask
Electrical control box and antistatic mat
The chamber also includes its electric seat, interior and exterior touchscreens, intercom, viewing window and interior features. Refer to the final packing list for the exact quantity and configuration of each supplied item.
Support Beyond the Equipment

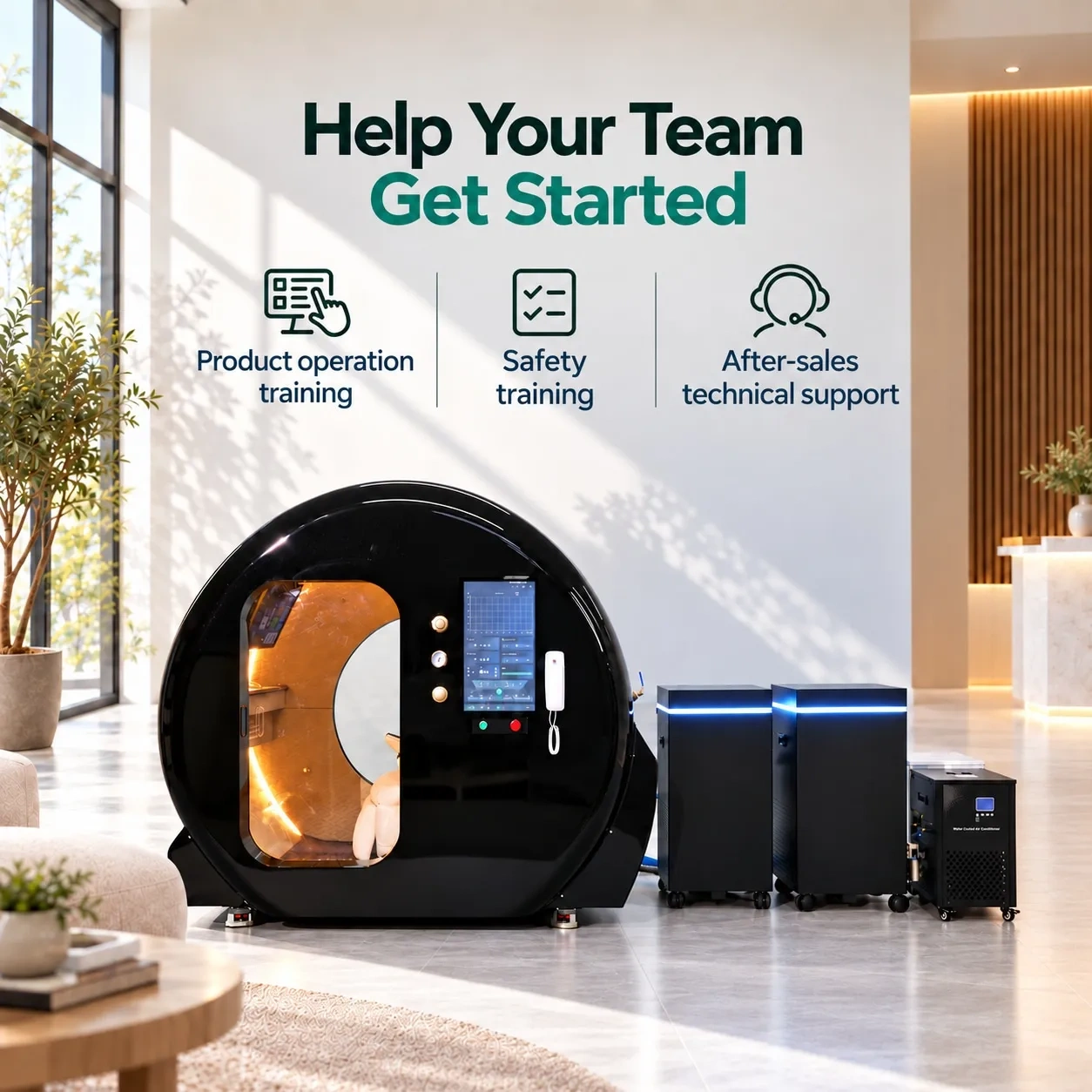

We provide product operation and safety training to help you understand the chamber controls, routine use and key safety procedures. After delivery, our team can assist with product-related questions and technical support.
Product test reports are available upon request. Contact us if you need the available documents or want to review site requirements before ordering.
There is no single schedule that is right for everyone. How often you should use your chamber depends on your health, the reason for use, the pressure setting, and the oxygen-delivery method.
Some medically supervised treatment plans involve one session a day, five days a week, but this is not a general recommendation for home or wellness use. Consult a physician experienced in hyperbaric medicine to determine an appropriate schedule, session length, and pressure setting. Always follow your chamber’s operating instructions.
Our soft-shell and hard-shell hyperbaric chambers are designed with safety in mind, using durable materials selected for each model’s operating pressure. Each chamber undergoes quality inspections and functional testing before shipment. Pressure-control systems and multiple pressure-release safeguards help maintain stable operation and allow controlled pressure release when needed.
Yes. Our chambers are designed to allow one person to enter and operate the controls. Hard-shell models feature a sliding door and an internal touchscreen for controlling the session. Soft-shell models use a double-layer zipper system that can be opened and closed from both inside and outside, along with a remote control to start and stop operation.
For safe use, follow your model’s operating instructions and any supervision requirements. Being able to operate the controls independently does not mean every user should use the chamber unattended.
